Why “how much you know” changes what you find

The same bug can hide or expose itself depending on what the tester is allowed to see. A white-box engineer spots an off-by-one in pagination logic by reading the diff; a black-box suite never reaches that branch because it only taps happy-path buttons; a gray-box on-call engineer correlates a stack trace with a known framework workaround. Box type is not a maturity ladder — it is a scope choice tied to oracle, owner, and risk.

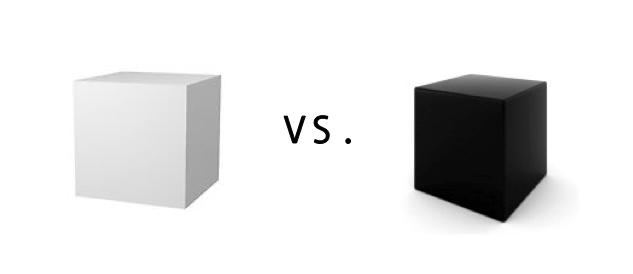

Figure 1. White box — full internal view; black box — external behavior only; gray box — partial knowledge.

White box testing — structure, coverage, and performance

White box testing assumes full knowledge of implementation: source, architecture diagrams, build flags, sometimes runtime hooks. The tester verifies how the software works — control flow, data flow, resource use — not merely whether a button label matches spec.

Typical owners: feature developers, platform engineers, security reviewers with code access.

Android failure modes white box catches first

• Lifecycle leaks. Reading an Activity-held listener that survives rotation shows why onDestroy never unregisters — Espresso alone may only report a slow leak days later in profiling.
• Main-thread blocking. Static analysis plus reading a Repository implementation reveals a runBlocking call on UI thread; black-box UI tests might flake only under load.
• Compose recomposition waste. Inspecting slot table structure and unstable parameters explains wasted recompositions on a message list — the Systrace symptom is visible black-box; the fix is white-box (stable keys, skippable lambdas).
• Incorrect @VisibleForTesting seams. Unit tests that reach into private state can pass while violating module boundaries — white-box review catches false confidence.

Tools: JUnit on JVM, Robolectric with shadow internals, JaCoCo coverage, Android Studio profilers, lint with custom detectors.

Tradeoff: Tests bind to implementation. Refactoring breaks brittle tests even when user-visible behavior is unchanged. Use white box for invariants and hot paths, not every pixel.

Black box testing — behavior as the only oracle

Black box testing treats the system as opaque. Testers specify inputs and expected outputs with no reliance on source — ideal for third-party QA, compliance checks, and customer-visible contracts.

Typical owners: external QA, release qualification, cross-team consumers of an APK.

Android failure modes black box surfaces well

• Integration regressions across OEM skins. Mimic-style UI replay compares rendered trees across devices without reading app code — the oracle is visual/structural equivalence to a baseline recording.
• Permission and backup flows. Grant dialog → deny → retry paths from a clean install mirror user reality; internals of PermissionController do not matter.
• Deep link and notification cold start. Input: intent URI; output: correct screen and back stack — black-box contract tests survive internal refactors from Fragments to Compose.
• Accessibility. TalkBack traversal order and touch target sizes are behavioral; they should pass whether UI is XML or Compose.

Tools: Espresso, UI Automator, Maestro, Firebase Test Lab device farms, screenshot diff pipelines.

Tradeoff: Without structure hints, coverage is unknown. A passing suite may miss unreachable code paths entirely — pair with monitoring and staged rollouts.

Gray box testing — partial knowledge, production realism

Gray box testing blends both: some internal visibility — logs, feature flags, test accounts, symbolicated stacks, network traces — while exercising the product as users do.

Typical owners: on-call engineers, release captains, compatibility teams, beta triage.

Android failure modes gray box excels at

• Staged Compose migration. You know which screens still use WebView (partial map) and run black-box compose tests on migrated surfaces while reading internal rollout flags to bucket failures.
• Crash cluster triage. Play Console stack trace + mapping file + approximate repro steps — not full white-box debugging, but more than pure black box.
• ANR diagnosis. traces.txt names framework Binder stalls; gray-box tester correlates with systrace slice without rewriting business logic.
• Compatibility recovery flows. Research on reusing user flows after compatibility crashes sits here: partial knowledge of which activities relaunch, black-box replay of saved journeys (Recover from compatibility mobile app crashes).

Gray box is how most production Android teams operate day to day — neither pure unit isolation nor blind manual QA.

Picking a box for the job

Rule of thumb - developers white-box hot paths they own; release qualification black-boxes the APK; production incidents stay gray until root cause demands white-box depth.

References

• Mimic — UI compatibility testing
• Fundamentals of testing — Android Developers
• Myers, Sandler, Badgett, The Art of Software Testing — classic treatment of test design by visibility
• Recover from compatibility mobile app crashes by reusing user flows — gray-box recovery framing
